SuprMod

TV Modulator

I have the original "Sup"R"Mod" modulator, but it doesn't appear to be working at this time.  I plan to trouble shoot it and get it working when I get the chance.

Sup 'R' MOD. Update 4/8/07

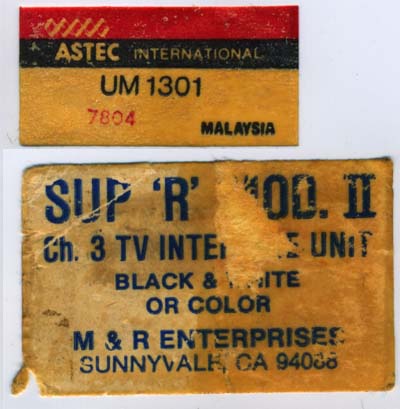

The modulator has been fixed.  There was a broken wire coming from the Apple II connector.  It is actually working better than I remember it working in the old days. Maybe I have it connected to a better TV than I used so long ago.  Along the way the old label on the unit fell off.  Under it was another label that also fell off.  Both of this labels are shown in the picture above.  Apparently all M&R did was build a power supply that connected to a standard ASTEC RF modulator. and package them together.  The cable that came with the with unit was pretty unusual in that it used an RF cable with two different RCA connectors with different length pins on them.  Unfortunately in days gone by I cut off one of the RCA connectors.  I haven't checked into replacement's yet, but it might be interesting to find or build one.  I also need to reattach those labels.  I also have my original instructions, the front page is shown on my Apple II collectibles page.
