Scelbi Layout Started

It looks like I’ll be putting the per cycle Scelbi emulator on hold for a while, since I just started on this:

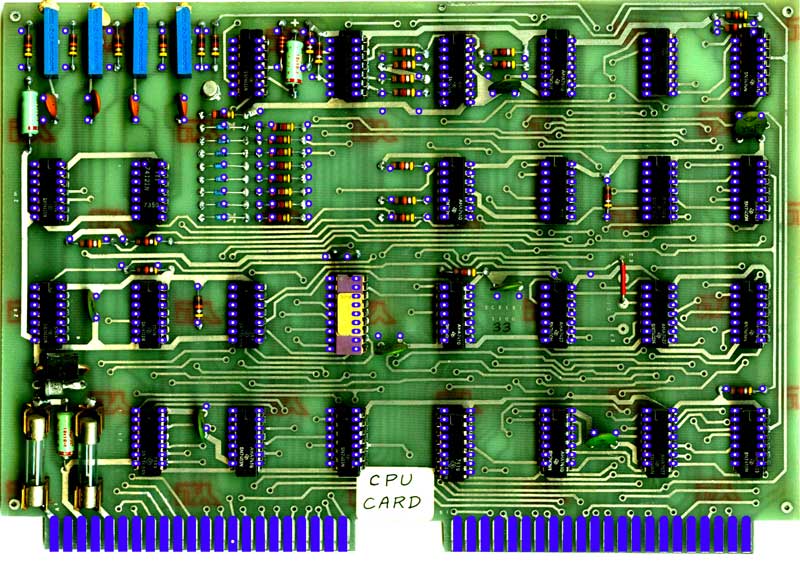

first draft of IC, resistor and cap placement

first draft of IC, resistor and cap placement

This is what the first rough draft of IC, resistor and cap placement for a replica Scelbi CPU card looks like. In the past, once I’ve started on layout, everything else usually goes on hold for a number of months.

This entry was posted on Sunday, October 9th, 2011 at 10:10 am and is filed under 8008, Vintage Computing. You can follow any responses to this entry through the RSS 2.0 feed. Both comments and pings are currently closed.

3 Responses to “Scelbi Layout Started”

  1. Mike Gregory says:
    October 11, 2011 at 1:48 pm

    Mike,

    Put me on the list for a set of boards.

    Best Regards

  2. Mike Willegal says:
    October 20, 2011 at 11:02 am

    Mike,

    It will be nice to have you on “board” as there is some sheet metal work involved. :-) Actually, it looks pretty straight forward – according the manual, the chassis is based on a Bud #413, which, much to my amazement, is still available and even in stock at places like mouser.

  3. Mike Gregory says:
    October 27, 2011 at 1:34 pm

    Mike,

    I know when I built Steve Gabaly’s Mark 8 minicomputer board set up they still sold the BUD 2140 case called out in the 74′ RE construction article!

    Best Regards
