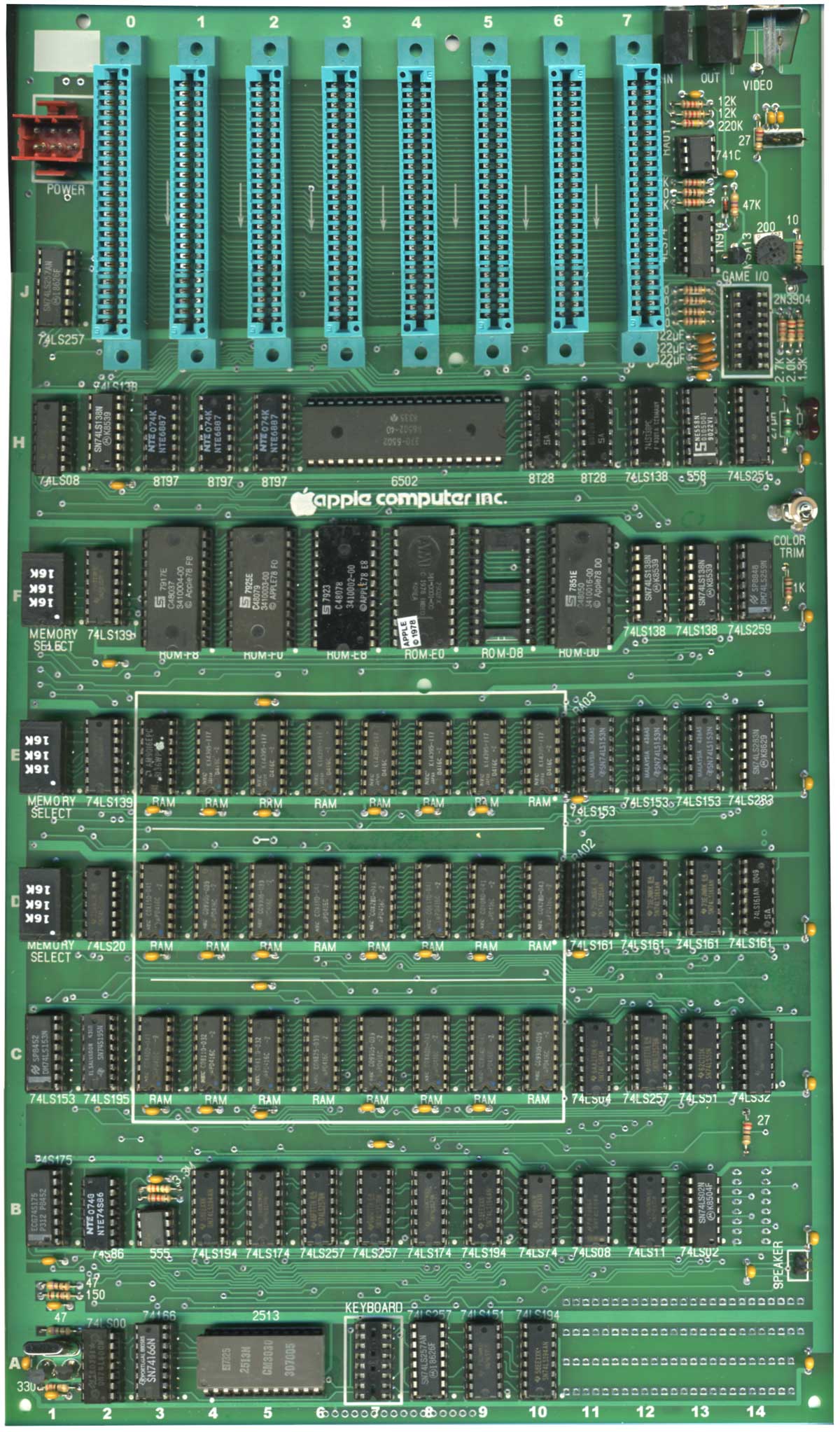

Here is an image of my completed prototype.

2014 edition A2 rev 0

The image can also be found on my website.
http://www.willegal.net/appleii/images/2014rev0.jpg

This has taken much longer than expected, but I’ve got a few good decal sets ready and will start taking money, with shipments beginning no later than 1/27, with the first units likely to ship on 1/20.

The build manual can be found here.

Parts list can be found here.

Cost of bare PCB is $150 plus $20 shipping. In order to make a functional board, you will need to provide components, keyboard (my PS/2 keyboard adapter works with Apple IIs), power supply (from Apple II plus), and ROMS (see my ROM page). I’ve heard from Rob at Unicorn and he might be putting together component kits (no ROMs).

If you are not into building kits, but you are a Apple II fan, keep in mind that a framed bare PCB would look great in your den.

Send an email to:mike@willegal.net if you need more details about ordering.
