Current State of Datanetics Layout

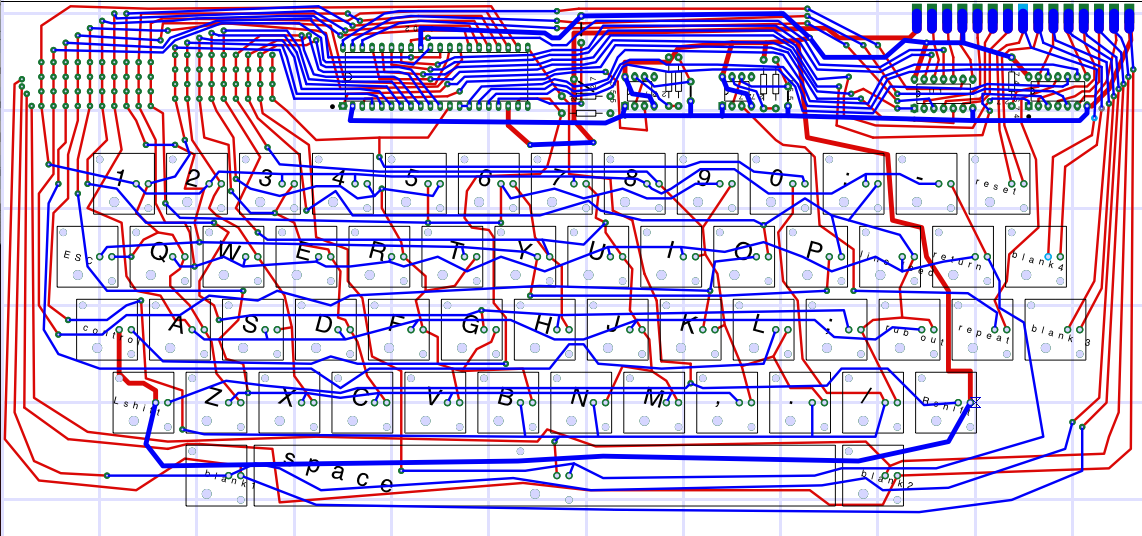

I’ve got all connections made, except for the connections from the blank keys to the matrix on the upper left side of the keyboard. From here I may take a break and make a schematic, since I’m not aware of any in existence for this keyboard.

I still have holes to drill 🙂 and plenty of fine tuning to do. This layout will match a Rev B board. There is a mistake in the original layout of this board which requires a couple of of cuts and and a jumper. I will probably leave the mistake in place.

The pinout of the edge connector is:

Front (from inside of board moving toward edge when facing front of board, left to right)
-12V
B6 (B is data bit)
B5
B4
B1
B2
B3
Reset key pin 1
Reset key pin 2
Output enable (this is an input to the keyboard, but is pulled up on the board to +5 volts)
STROBE (output)
B7
B8
B9
GROUND

back side of keyboard (from edge of board moving inward when facing back of board) (Right to left)
blank keyswitch 2-2
blank keyswitch 2-1
blank keyswitch 1-2
blank keyswitch 1-1
blank keyswitch 3-2
blank keyswitch 3-1
blank keyswitch 4-2
blank keyswitch 4-1
unused
unused
unused
+5 Volts
unused
unused
unused
